- Fully automatic capsule filling machine
Brand:Hi Now
Product origin:China
Delivery time:25 days
Options: automatic capsule and material feeding, pellet filling station,wet water pump, customized size, customized electrical configuration
Machine parameters
|
Model |
NJP-800C |
|
Filling capacity |
48000pcs per hour |
|
Weight |
900Kg |
|
Dimension |
1100×900×2050mm |
|
Power supply |
380/220V 50Hz |
|
Total power |
5KW |
|
Segment bores |
6 holes |
|
Vacuum |
40m3/h-0.04-0.08Mpa |
|
Dust collector |
24.5Kpa 210m3/h |
|
Air compression |
Air consumption 5m3/h Pressure 5-7Kg |
|
Water source |
500L/h 0.1-0.2Mpa |
|
Operating noise |
<75DB(A) |
|
Filling percentage |
Empty capsule 99.9% filled capsule 99.8% |
|
Capsule size |
00,0,1,2,3,4,5# |
|
Filling accuracy |
Western medicine ±3% Chinese medicine ±4% |
|
Suitable for |
Powder, Granule, Pellet, Tablet. |
Introduction

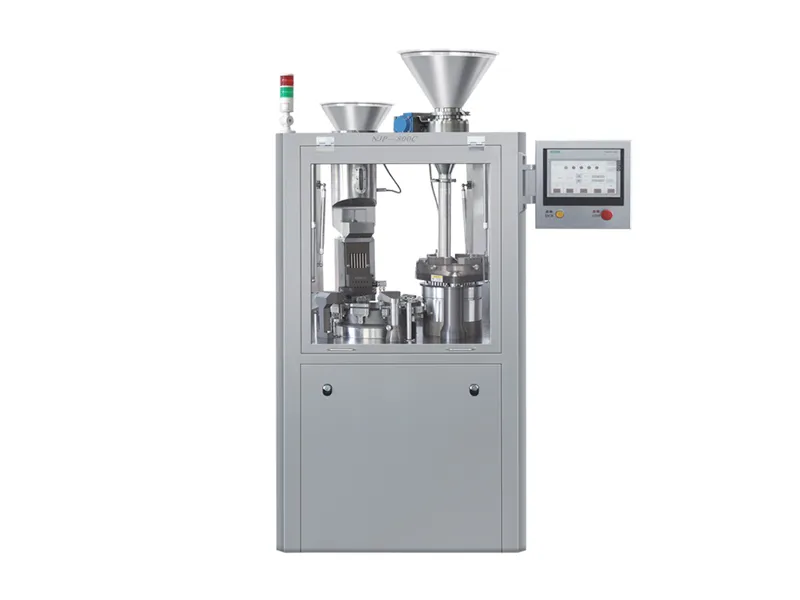

NJP-800C automatic capsule filler processes the products for optimal productivity up to 800 capsules per minutes, featuring low-maintenance operation, minimal downtime, and overall dependable production.
Powder dosing uses the 5 stage tamping technology for an enhanced accuracy. Filling of pellets is available.
Capsules from the bunker are fed into the orienting device along the vertical guide.

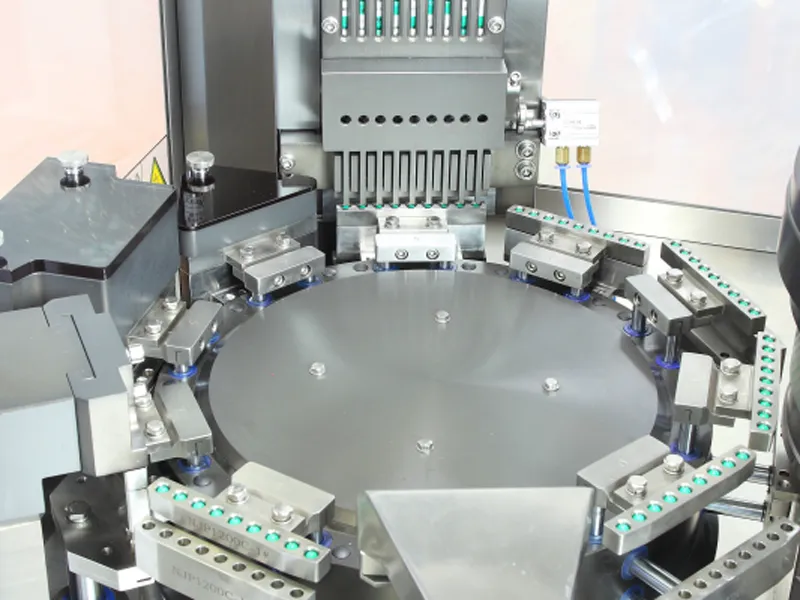

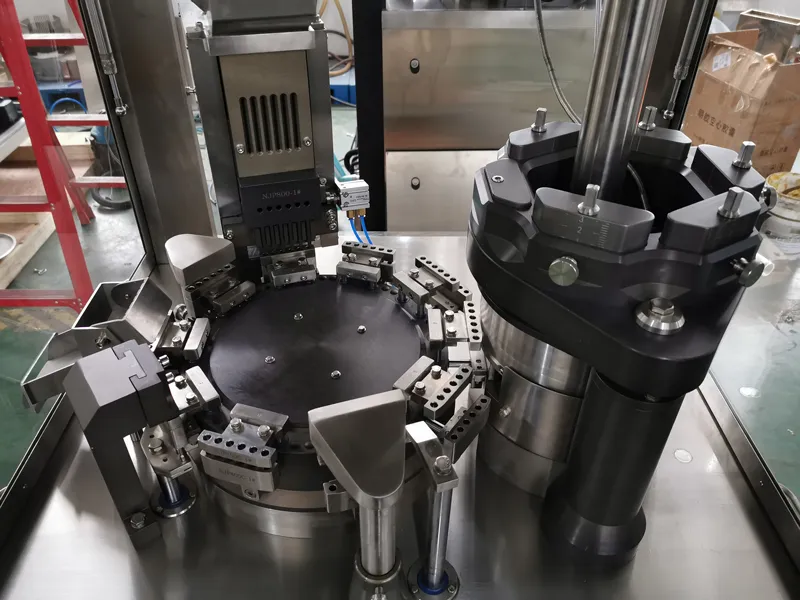

Then they are transferred into special cells on the rotor. Here the capsule is separated, after what the bottom part comes to the filling position.
After filling the bottom part with the material, on next positions, the non-separated capsules are rejected, and the filled bottom parts are joined with top parts, counted and taken away into the receiving box.
The equipment design is fully in line with the requirements of CGMP and FDA specification.
