- Semi-Automatic Capsule Filling Machine JTJ-V
Touch screen model price:6000USD Button model price:5300USD
Brand:Hi Now
Product origin:China
Delivery time:25 days
Options: Wet water pump pellet filling station, Powder pressing plate,customized size, customized electrical configuration
Machine parameters
Productivity
Up to38,000- 43,000 capsules/hour
Applicable capsules
000#、00#、0#、1#、2#、3#、4#、
Filling dosage form
Powder and granule without viscosity and humidity
Total power
3.2 kw
Voltage
380V/220V.3phase or single phase
Air pressure
0.03m3/min 0.7Mpa
Vacuum pump
Pumping rate 40m3/h
Overall dimensions of fuselage (length × width × height)
1780X780X1580mm
Introduction

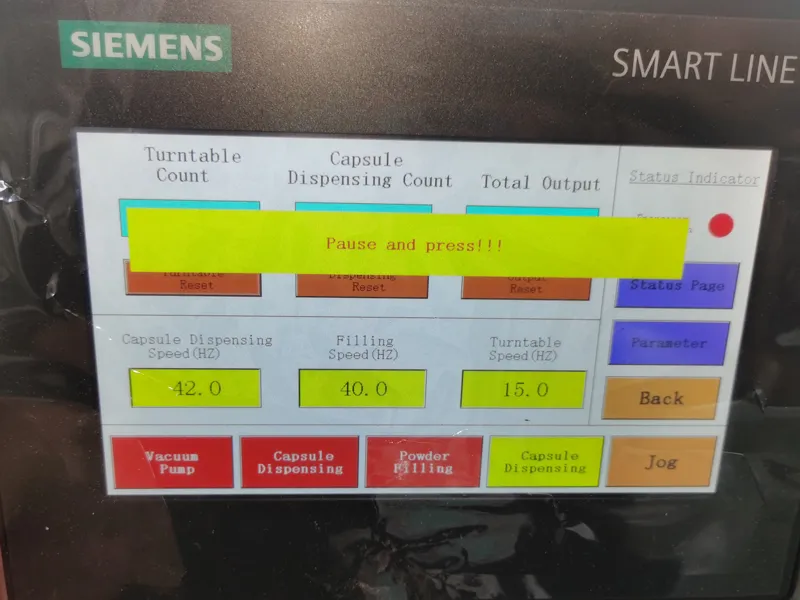

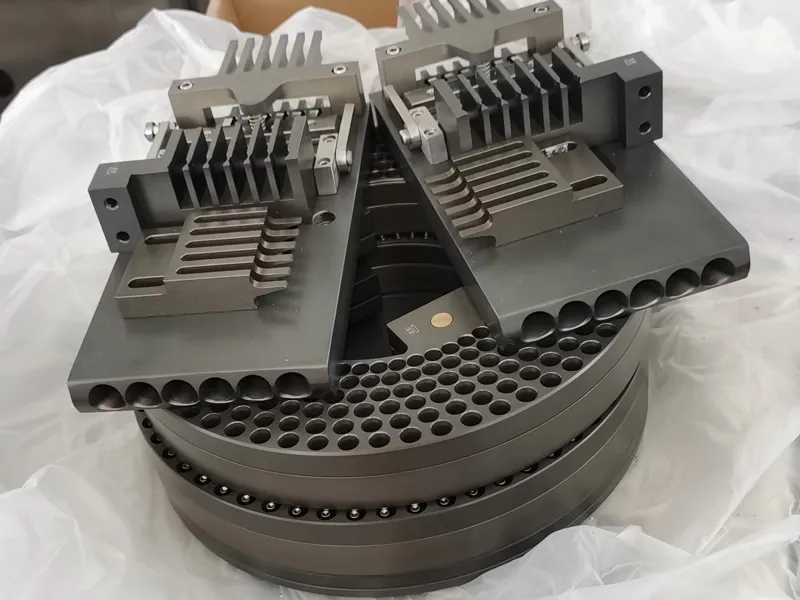

The JTJ-V Pro Capsule Filling Machine builds upon the proven JTJ-V platform, delivering enhanced operational efficiency and ultra-smooth production through precision-engineered motion control. This cGMP-compliant system integrates pharmaceutical-grade innovations—including automated capsule alignment, vacuum-assisted separation, and ergonomic safety interlocks—to achieve outputs up to 43,000 capsules/hour with ±2% dosing uniformity. Its modular tooling supports rapid cross-sizing adaptation (capsule #000 to #5) via quick-change mold kits (15-minute changeover) and accommodates diverse formulations such as powders, pellets, and granules. Operator-centric design combines HMI touch controls with tool-less disassembly, streamlining cleaning validation and maintenance in regulated production environments.
