Brand:Hi Now
Product origin:China
Delivery time:30 days
Options: automatic tube and material feeding, Heated mixing hopper, customized size, customized electrical configuration
Machine Parameter
|
Model |
HNM-60 |
|
Power |
Supply: 380V / 3 Phase / AC / 50 Hz |
|
Capacity |
30-60pcs/min |
|
Main Power |
1.1 kw |
|
Tube diameter |
10-35mm |
|
Filling capacity |
3-250ml |
|
Filling precision |
≤+/-1% |
|
Air pressure |
0.4-0.6 MPa |
|
Dimensions |
1950×1000×1800mm |
|
Weight |
850Kg |
Introduction

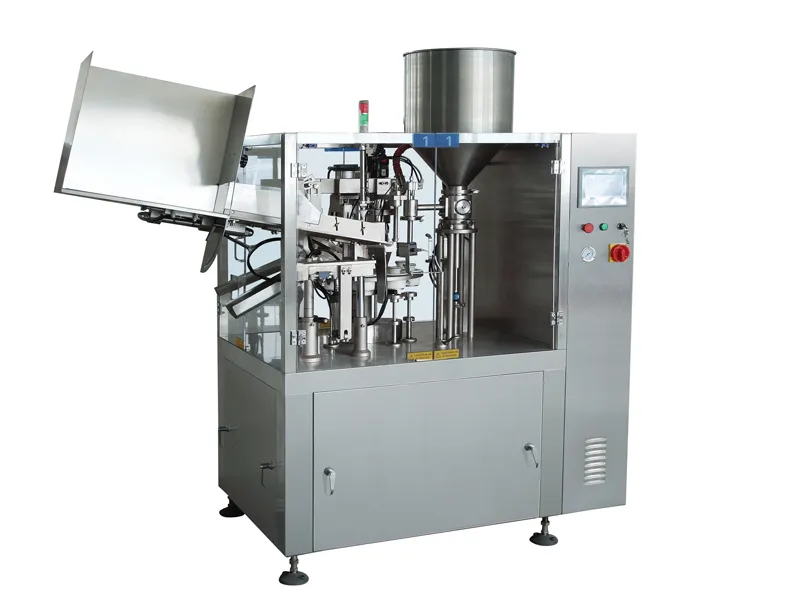

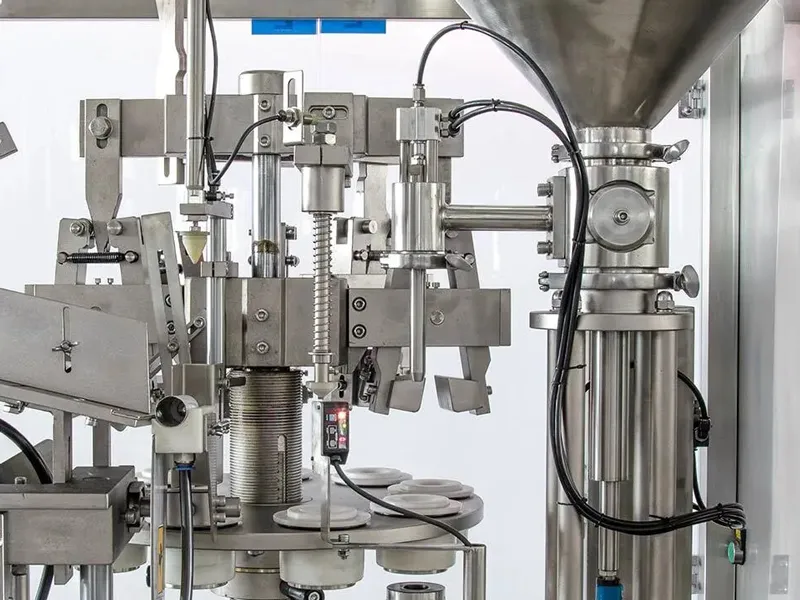

This machine is equipped with a PLC controller and a color touchscreen interface, enabling fully programmable automation. It performs automatic filling of ointments, creams, gels, or viscous materials, followed by tail folding and batch number embossing (including manufacturing date). Designed for aluminum and lead tube filling and sealing, it serves as an ideal solution for industries such as cosmetics, pharmaceuticals, food, and adhesives.

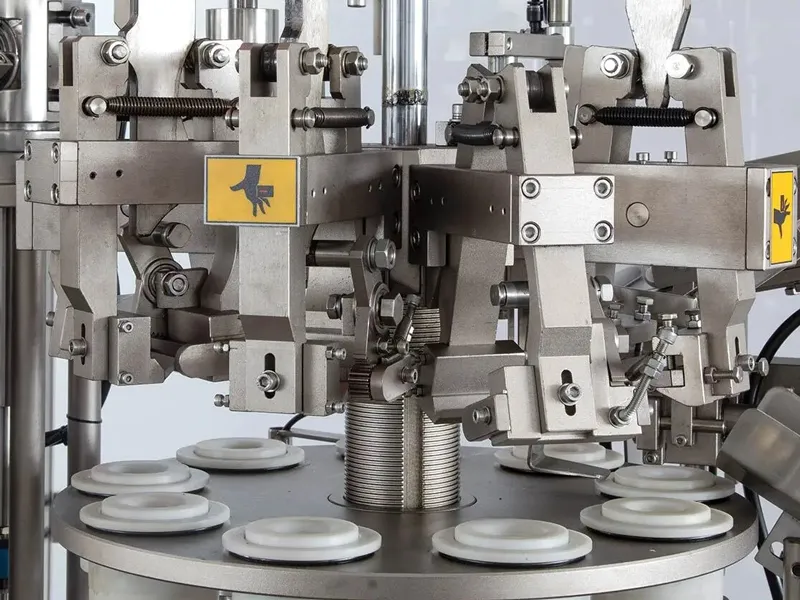

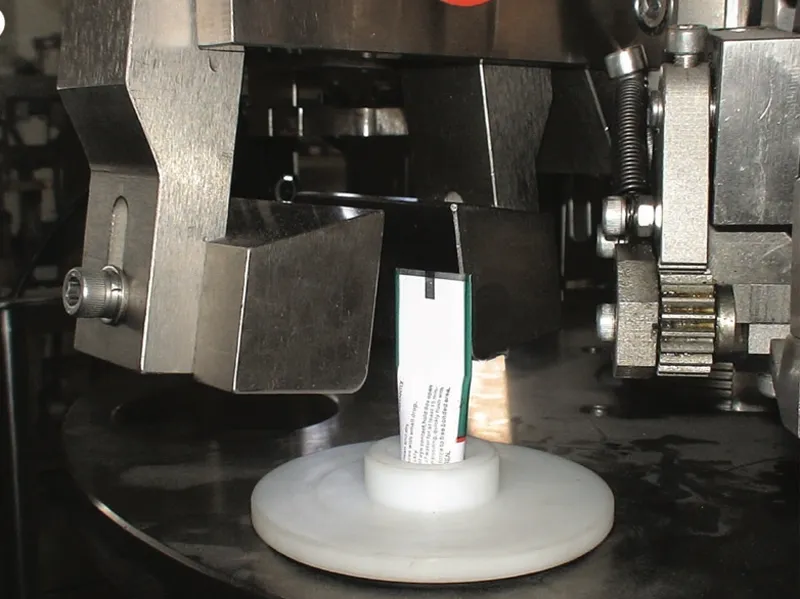

The machine have 9 stations, can choose different station and equip corresponding manipulator to meet different type of tail folding, sealing requirement for alu tube, lead tube, It is a multi-purpose machine.
Tube storage can through motor to adjust up-down height as per different tube length. And can With external reversal feeding system, makes tube charging more convenient and tidy.

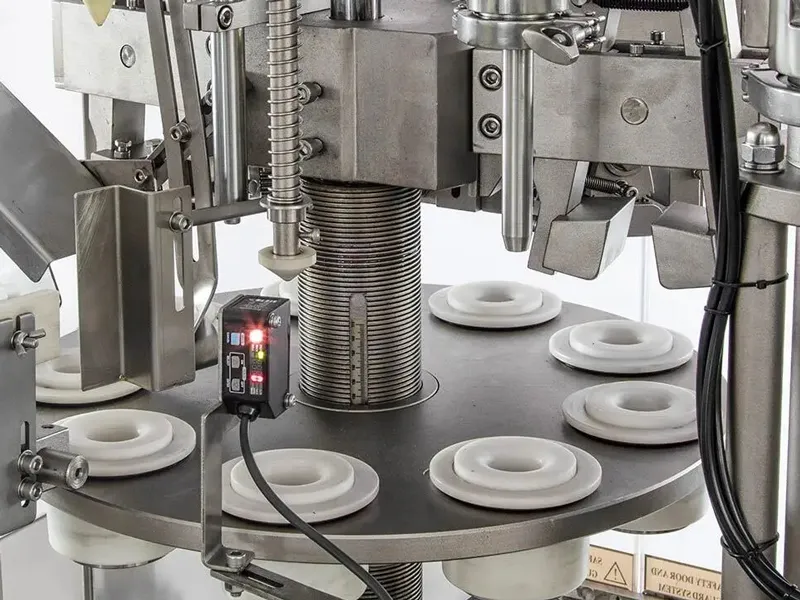

The mechanical linkage photo sensor precision tolerance is less than 0.2mm. reduce the chromatic aberration scope between tube and eye mark.
Light, electric, pneumatic integrative control, No tube, no filling. Lower pressure, auto display (alarm); The machine stop automatically if tube error or open the safety door.
Double-layer jacket instant heater with inside air heating, it won’t damage the pattern outer wall of tube and achieves firm and beautiful sealing effect.
