Hi Now ZRJ Series Emulsifying mixer machine,Emulsifying mixer, Emulsification Mixer For Sale

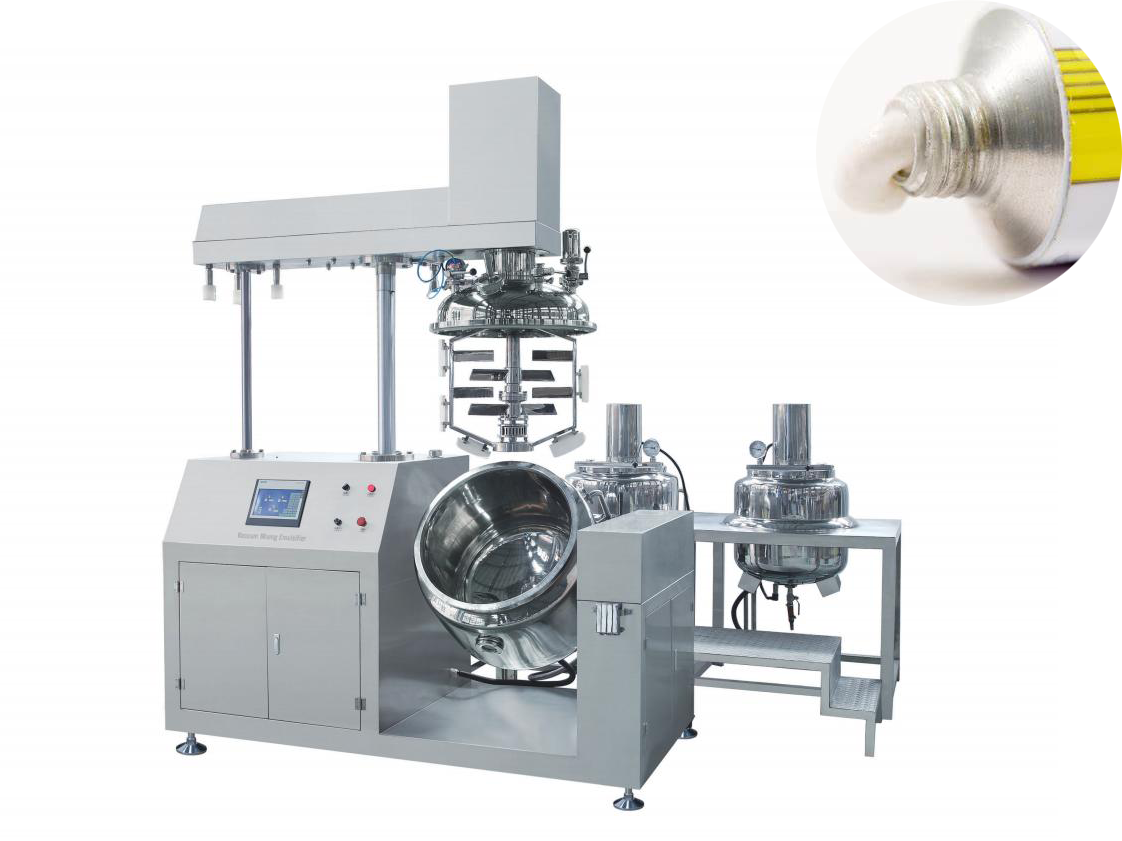

ZRJ Series Emulsifying mixer machine

Brand:Hi Now

Product origin:China

Delivery time:30 days

Emulsifying mixer delivers pharmaceutical-grade emulsion production through advanced rotor-stator assembly, achieving nanoscale dispersion with precision-controlled shear forces. Engineered for cosmetic, pharmaceutical, and food processing industries, our industrial emulsification systems transform immiscible liquids into monodisperse microemulsions (≤5μm droplet size) with 98% batch consistency. Featuring intelligent thermal management and modular scalability from R&D to full production, our custom emulsifier solutions boost processing efficiency by 40% while maintaining strict ISO/GMP compliance. Request your sector-specific emulsion optimization proposal today.

Emulsifiers are widely used in cosmetics, food, pharmaceutical adhesives, paints, plastic resins, printing and dyeing, inks, asphalt and other industries.

Emulsifier structure:

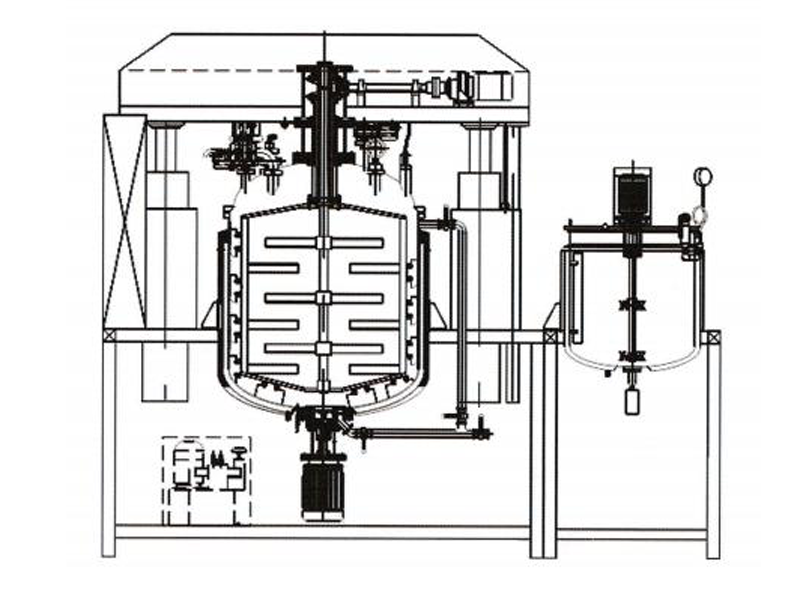

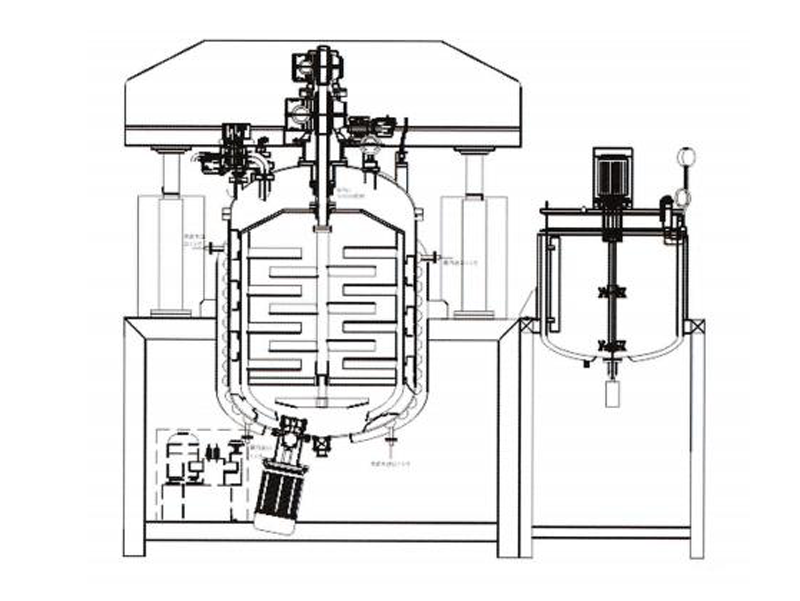

This emulsifier consists of an oil tank, a water tank, a vacuum homogenizer, a heating system, a stirring system, a vacuum system, an electric lifting system, an operation control cabinet, and a pipeline system

Emulsifier principle:

Step 1: Put the water-soluble raw materials into the water pot, then heat and mix.

Step 2: Put the oil-soluble raw materials into the oil pot, heat and mix, then suck the two raw materials into the main pot and homogenize the two materials with a homogenizer.

Features of Hi Now emulsifier:

1. The new emulsifier can customize the emulsifier head according to the particle size of the customer's product

2. It can produce nanoparticles or micron particles, the size is determined by the customer

3. The perfect choice for stable homogeneous emulsions and suspensions

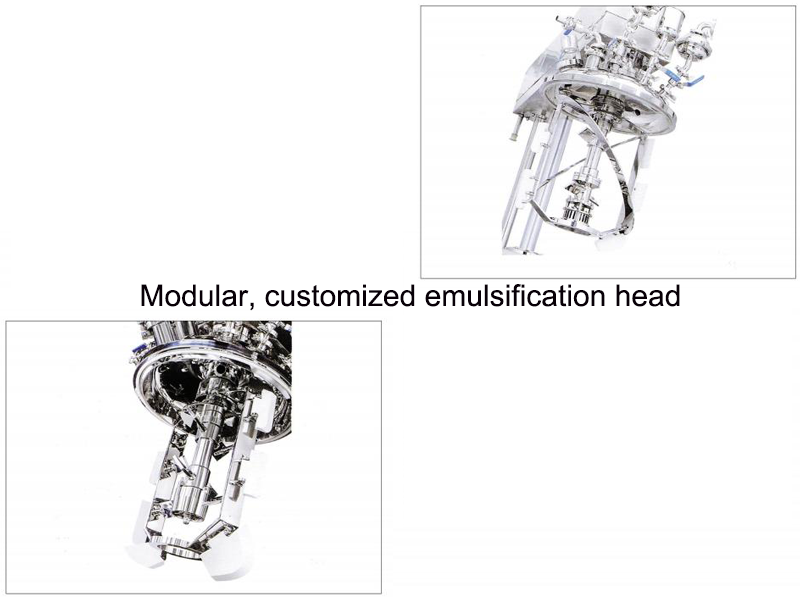

4. The dispersion head can be freely assembled, modular, and easy to maintain

5. A concentrated particle size distribution can be obtained with just one treatment

6. Stepless speed regulation (inverter)

7. All contact materials are made of SS316

8. Meets CIP/SIP cleaning standards, suitable for food and pharmaceutical production

Model	Volume	Emulsify motor		Mixer power		Length	Width	Height	Max height
ZRJ-10	10L	1.1KW	0-3500rpm/min	0.37Kw	0-60r/m	1200	600	1300	1700
ZRJ-20	20L	1.5KW	0-3500rpm/min	0.75Kw	0-60r/m	1500	800	1500	2050
ZRJ-50	50L	3KW	0-3500rpm/min	0.75Kw	0-60r/m	2750	2100	1900	2600
ZRJ-100	100L	3KW	0-3500rpm/min	1.5kw	0-60r/m	2800	2150	2100	2800
ZRJ-200	200L	4KW	0-3500rpm/min	1.5kw	0-60r/m	2850	2200	2200	3100
ZRJ-300	300L	5KW	0-3500rpm/min	2.2kw	0-60r/m	3000	2600	2500	3550
ZRJ-500	500L	7.5KW	0-3500rpm/min	2.2kw	0-60r/m	3800	2800	2700	3950
ZRJ-750	750L	11KW	0-3500rpm/min	3.7kw	0-60r/m	3900	3900	2900	4400
ZRJ-1000	1000L	11KW	0-3500rpm/min	3.7kw	0-60r/m	3900	3400	3150	4550
ZRJ-2000	2000L	22KW	0-3500rpm/min	7.5kw	0-60r/m	4850	4300	3600
