Brand:Hi Now
Product origin:China
Delivery time:25 days
Options: Chiller,Air compressor, online inkjet printer and labeling, Eye mark,customized size, customized electrical configuration
Machine parameters
|
Model |
DZP-350 |
|
Punch Speed |
Production capacity: 10-15 times/min |
|
Materials and specifications |
Paper card: width 350mm, thickness 300-350g; medicinal PVC maximum width 350mm, thickness 0.25-0.40mm |
|
Stroke range |
50mm-240mm |
|
Packaging efficiency |
(Depending on the area of the packaging) |
|
Packaging range |
Suitable for toothbrushes, daily necessities, small hardware, cosmetics, stationery, etc. |
|
The main function |
Adjustable stroke device, mold platen positioning device, plate heating device, servo traction, finished product punching output |
|
Maximum forming depth (mm) |
32mm |
|
Maximum molding area (mm 2 ) |
340×230×32mm |
|
Power Specifications |
Three-phase 220V 50Hz-60Hz |
|
Total power consumption (kW) |
11KW |
|
Compressed air pressure (MPa) |
0.6-0.8MPa |
|
Compressed air consumption (m 3 /h) |
≥1m 3 /min |
|
Cooling water consumption (m 3 /h) |
Refrigeration cycle cooling water |
|
Noise(dB) |
60-70dB |
|
Overall dimensions (L×W×Hmm) |
5900×1450×1650mm |
|
Weight (kg) |
2000kg |
Introduction

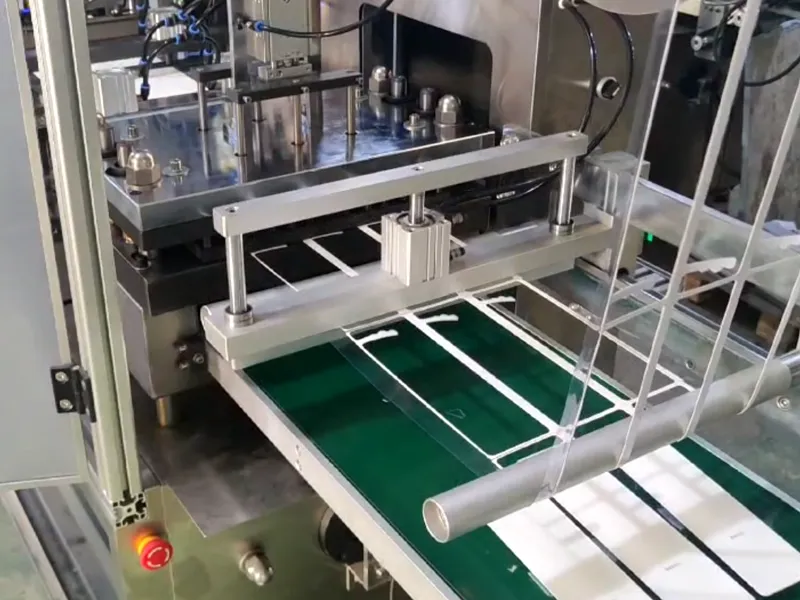

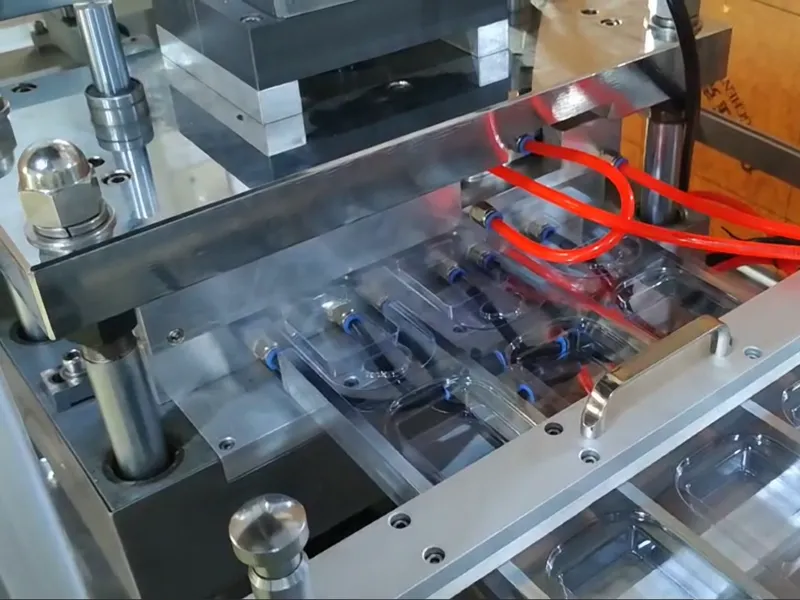

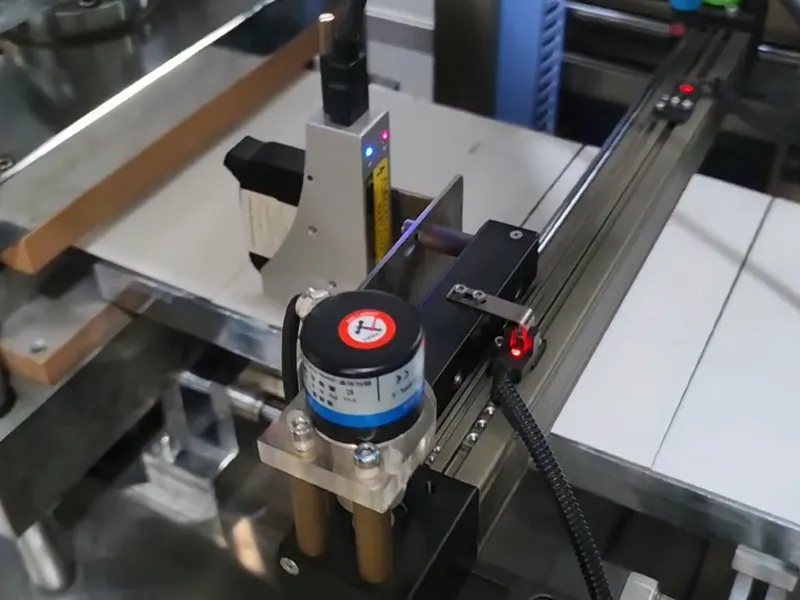

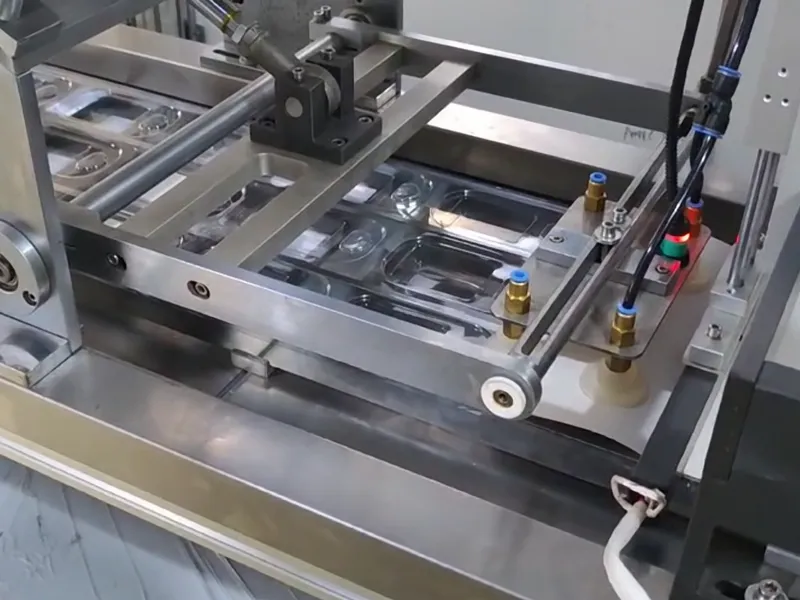

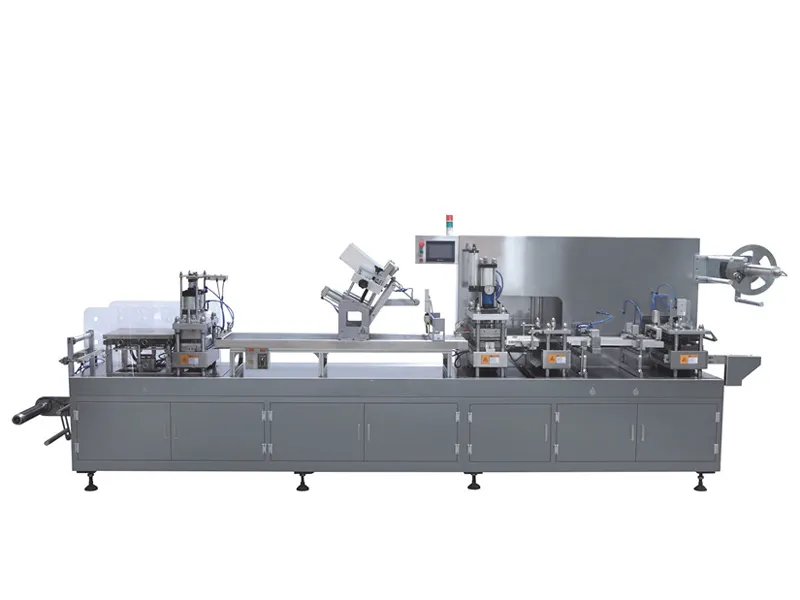

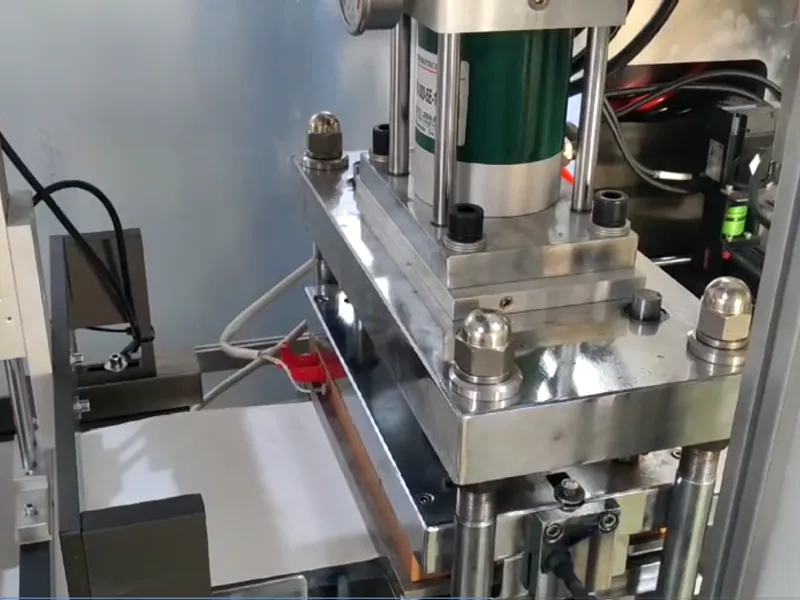

Form-fill-seal blister machine for toothbrushes and other products. Maximizes production by forming multiple blisters on a single sheet and separating the individual packages at the final cutting station. Blisters are punched with matching metal dies to ensure excellent cutting quality. Equipped with in-line coding and labeling, it allows limited factory space to be used, minimizing costs.
